3/8" Tube OD x 1/4" NPT Male Swivel Elbow 90° Push-to-Connect Nickel-Plated Brass Air Fittings (5-Pack) - UTAH PNEUMATIC
3/8" Tube OD x 1/4" NPT Male Swivel Elbow 90° Push-to-Connect Nickel-Plated Brass Air Fittings (5-Pack) - UTAH PNEUMATIC

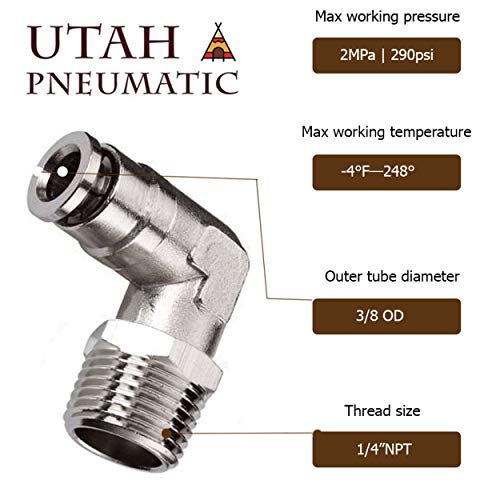

Heavy-Duty 90° Swivel Male Elbow Push-to-Connect Air Fittings (5-Pack)
Engineered for efficient, high-flow pneumatic installations, compressed air lines, automation systems, and machinery. Built from solid nickel-plated forged brass with a 360-degree rotating swivel base, allowing quick tubing alignment in restricted or compact spaces.
Key Features & Benefits
-
360° Free Swivel Base: Rotates smoothly after tightening into the 1/4" NPT female port to ensure stress-free tubing routing.
-
Instant Push-to-Connect Lock: Elliptical release ring allows effortless, tool-free tube connection and fast release.
-
Nickel-Plated Brass Body: Superior mechanical strength, wear resistance, and long-term corrosion protection.
-
Pre-Coated Thread Sealant: Factory-applied Teflon sealant on 1/4" NPT male threads ensures a tight, leak-free seal right away.
-
High Flow Capacity: Full 3/8" tubing capacity minimizes pressure drop across pneumatic circuits and air tools.
-
🚚 Fast & Free Shipping: Free shipping across the United States.
Technical Specifications
| Parameter | Specification |
| Material | Nickel-Plated Brass & Metal Collet |
| Fitting Type | 90° Swivel Male Elbow (Tube OD to NPT Male) |
| Tube OD (Push-in) | 3/8" (9.52 mm) |
| Thread Size | 1/4" NPT Male |
| Package Quantity | 5 Pieces (Pack of 5) |
| Working Pressure | 0 to 250 PSI (Up to 2.0 MPa Max) |
| Operating Temperature | -4°F to 248°F (-20°C to 120°C) |
| Compatible Tubing | PU (Polyurethane), PA (Nylon), PE (Polyethylene), PVC |
| Applicable Media | Compressed Air, Vacuum, Non-Potable Water |
