1/4" OD DOT Air Brake Nylon Tubing, 32.8 FT / 10M (Yellow, PA12) - UTAH PNEUMATIC
1/4" OD DOT Air Brake Nylon Tubing, 32.8 FT / 10M (Yellow, PA12) - UTAH PNEUMATIC

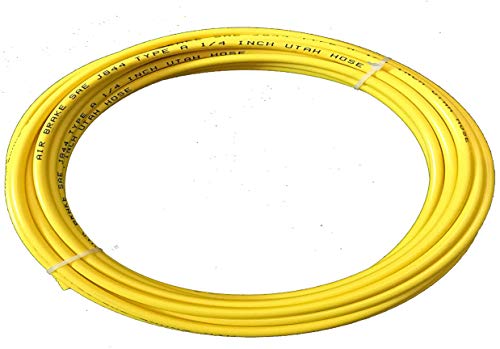

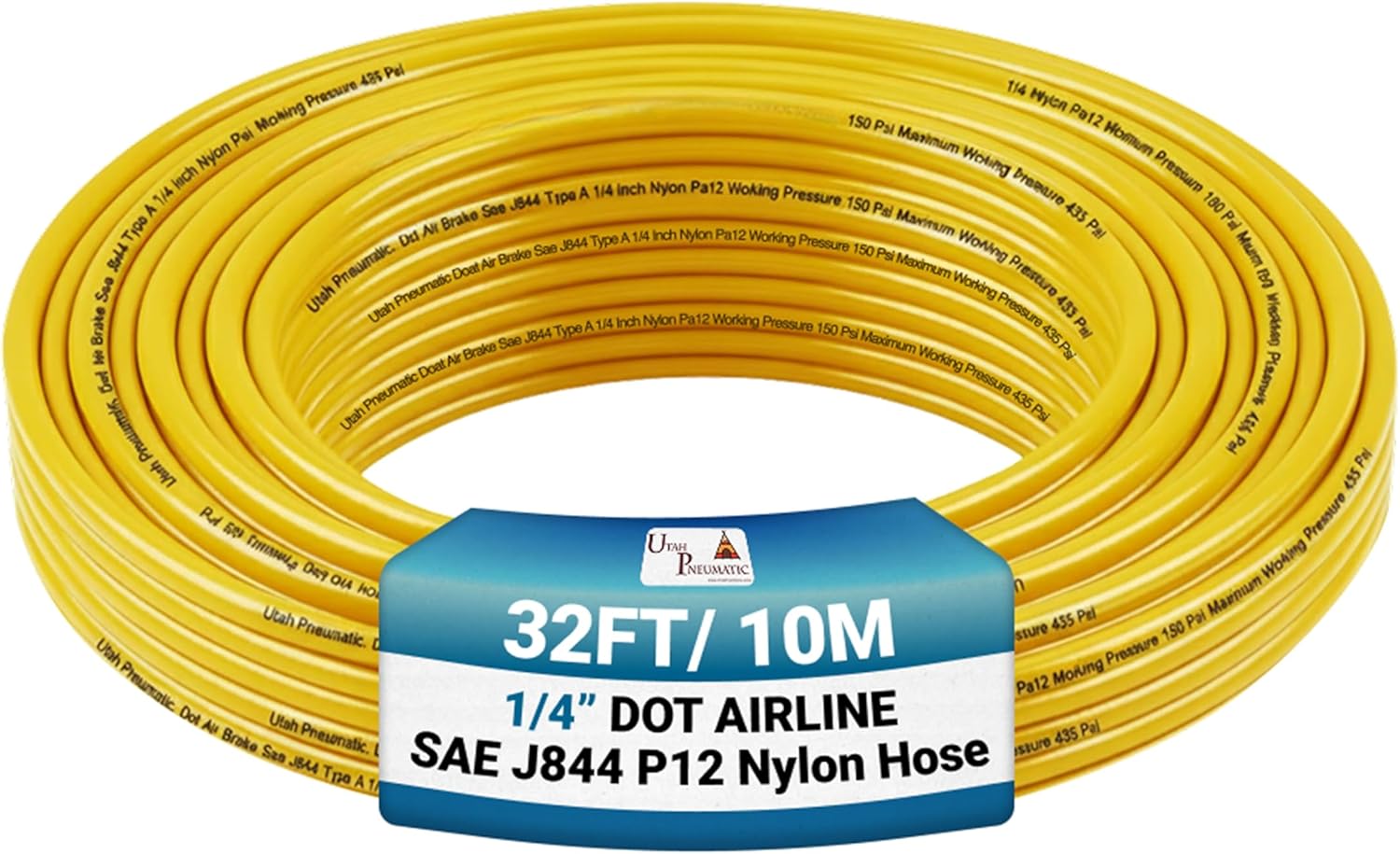

DOT-Approved Heavy-Duty 1/4" Yellow Nylon Air Line (32.8 FT / 10 Meters)
Engineered for demanding truck, trailer, suspension, and industrial air brake applications. Manufactured from premium PA12 polyamide nylon, this high-visibility yellow 1/4" air line delivers outstanding pressure resistance, kink resistance, and long-term reliability in extreme operating environments.
Key Features & Benefits
-
DOT & SAE J844 Type A Compliant: Certified for vehicular air brake systems, air ride suspension, and industrial pneumatics.
-
High-Visibility Yellow: Ideal for color-coding specific air circuits, supply lines, or secondary pneumatic loops.
-
Heavy-Duty PA12 Nylon: Exceptional resistance to abrasion, oils, fuels, road salts, chemicals, and UV degradation.
-
Easy Push-to-Connect Installation: Fully compatible with standard 1/4" DOT compression fittings and push-to-connect air line fittings.
-
High Flexibility & Flow: Smooth internal bore prevents pressure drop while enabling tight bend radiuses.
-
🚚 Fast & Free Shipping: Free shipping across the United States.
Technical Specifications
| Parameter | Specification |
| Material | PA12 Polyamide Nylon |
| Outside Diameter (OD) | 1/4" (0.25 in / 6.35 mm) |
| Length | 32.8 Feet / 10 Meters |
| Wall Thickness | Approx. 1 mm |
| Bending Radius | 40 mm |
| Color | Yellow (High Visibility) |
| Working Pressure | Up to 150 PSI (2.5 MPa) |
| Burst Pressure | 800+ PSI (6.0 MPa) |
| Operating Temperature | -40°F to 200°F (-40°C to 93°C) |
| Applicable Standards | DOT FMVSS 106 / SAE J844 (Type A) |
| Applications | Semi-Truck Air Brakes, Suspension / Air Ride, Train Horns, Fluid & Air Transfer |
