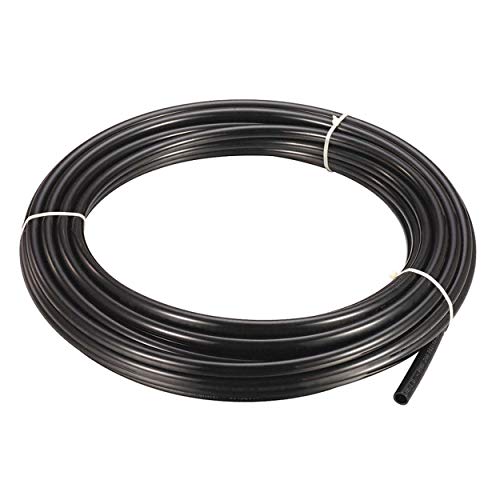

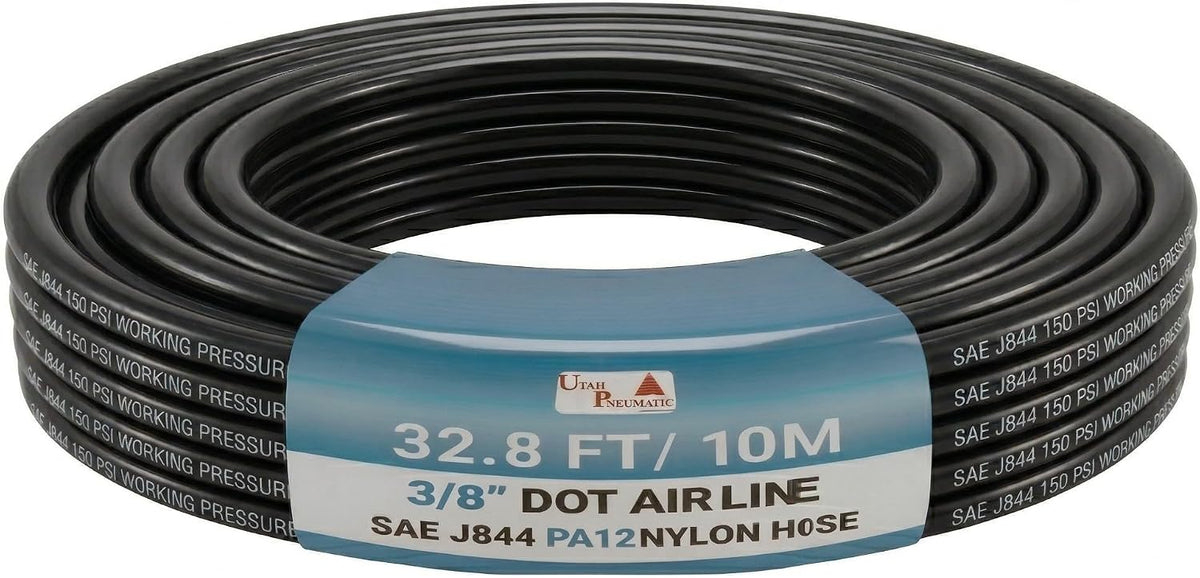

3/8" OD DOT Air Brake Nylon Tubing, 32.8 FT / 10M (Black, PA12) - UTAH PNEUMATIC
3/8" OD DOT Air Brake Nylon Tubing, 32.8 FT / 10M (Black, PA12) - UTAH PNEUMATIC
DOT-Approved Heavy-Duty 3/8" Nylon Air Line (32.8 FT / 10 Meters)
Engineered for demanding truck, trailer, suspension, and industrial air brake applications. Manufactured from premium PA12 polyamide nylon, this 3/8" air line delivers high flow capacity, superior pressure resistance, and extreme durability against wear and harsh environmental elements.
Key Features & Benefits
-
DOT Compliant: Meets SAE J844 and DOT FMVSS 106 standards for vehicle air brake and air suspension systems.
-
Premium PA12 Polyamide: Resists road debris, oils, grease, gasoline, chemicals, and UV exposure.
-
High Flow & Flexibility: 3/8" outer diameter delivers higher air volume with smooth internal flow and tight-radius bend capability.
-
Universal Compatibility: Fits standard 3/8" push-to-connect DOT fittings and compression fittings.
-
🚚 Fast & Free Shipping: Free shipping across the United States.
Technical Specifications
| Parameter | Specification |
| Material | PA12 Polyamide Nylon |
| Outside Diameter (OD) | 3/8" (0.375 in / 9.52 mm) |
| Length | 32.8 Feet / 10 Meters |
| Wall Thickness | Approx. 1.5 mm |
| Bending Radius | 55 mm |
| Color | Black |
| Working Pressure | Up to 150 PSI (2.5 MPa) |
| Burst Pressure | Up to 870 PSI (6.0 MPa) |
| Operating Temperature | -40°F to 200°F (-40°C to 93°C) |
| Applicable Standards | DOT FMVSS 106 / SAE J844 |
| Applications | Air Brakes, Air Horns, Train Horns, Air Ride Suspension |
