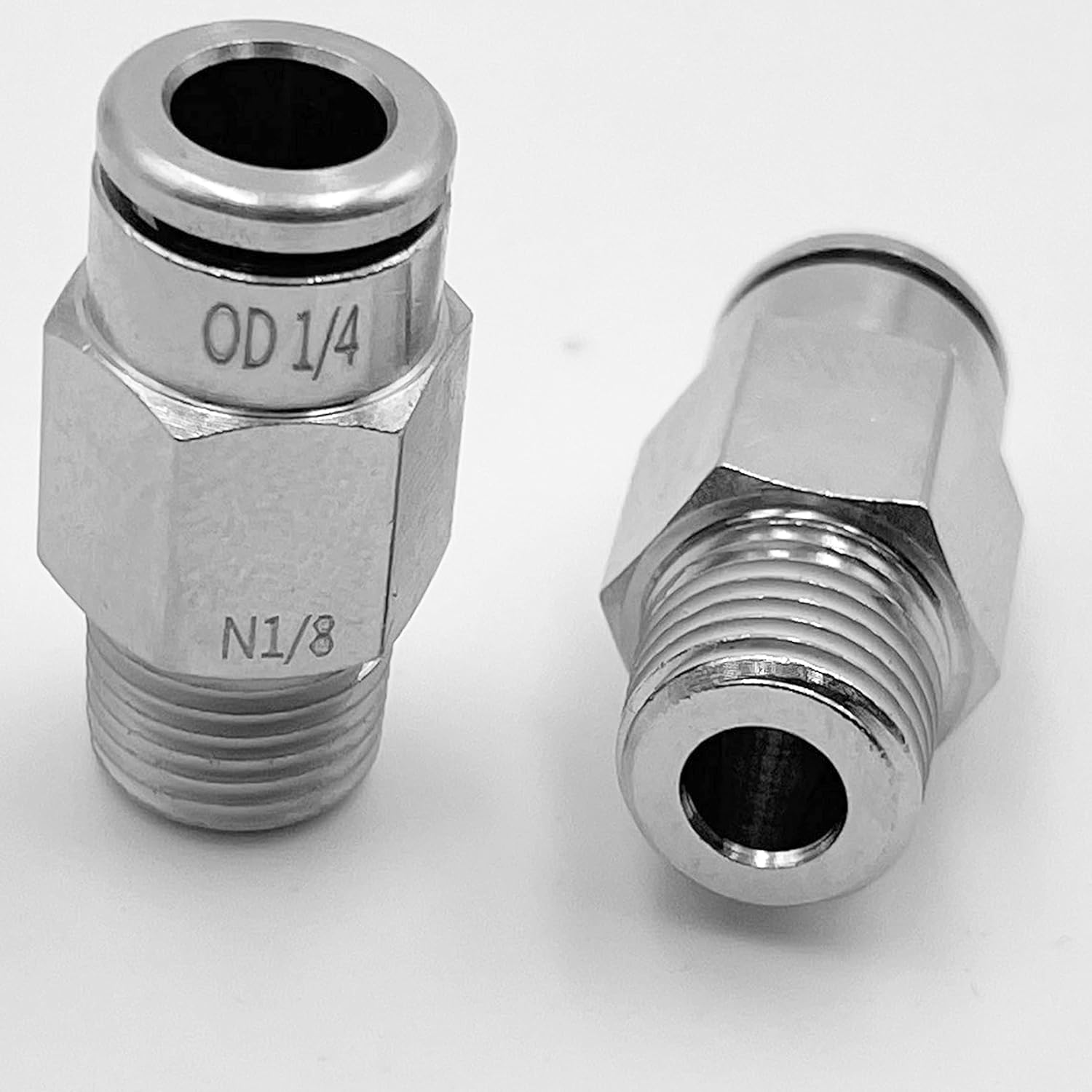

1/4" Tube OD x 1/8" NPT Male Straight Push-to-Connect Brass Air Fittings (5-Pack) - UTAH PNEUMATIC
1/4" Tube OD x 1/8" NPT Male Straight Push-to-Connect Brass Air Fittings (5-Pack) - UTAH PNEUMATIC
Heavy-Duty All-Brass Push-to-Connect Straight Air Fittings (5-Pack)
Engineered for fast, reliable, and leak-free tube-to-pipe connections in pneumatic circuits, air lines, automation, and fluid control systems. Built from premium solid brass for high working pressure resistance and long-lasting durability.
Key Features & Benefits
-
Instant Push-to-Connect Setup: Push the 1/4" tubing straight into the collar for an instant, airtight seal—no clamps, ferrule crimping, or special tools needed.
-
Solid Brass Construction: Premium forged brass body offers high structural strength and superior corrosion resistance compared to plastic fittings.
-
Pre-Coated Thread Sealant: Factory-applied sealant on the 1/8" NPT male threads ensures quick installation and leak-proof sealing right out of the package.
-
Optimal Airflow Design: Smooth internal bore maintains full flow with minimal pressure restriction for pneumatic tools and cylinders.
-
🚚 Fast & Free Shipping: Free shipping across the United States.
Technical Specifications
| Parameter | Specification |
| Material | Solid Brass |
| Fitting Type | Straight Male Connector (Tube to Thread) |
| Tube OD (Push-in) | 1/4" (6.35 mm) |
| Thread Size | 1/8" NPT Male |
| Package Quantity | 5 Pieces (Pack of 5) |
| Working Pressure | 0 to 250 PSI |
| Operating Temperature | -40°F to 200°F (-40°C to 93°C) |
| Compatible Tubing | PU (Polyurethane), PE (Polyethylene), PA (Nylon) Tubing |
| Applicable Media | Compressed Air, Inert Gases, Non-Potable Water |
