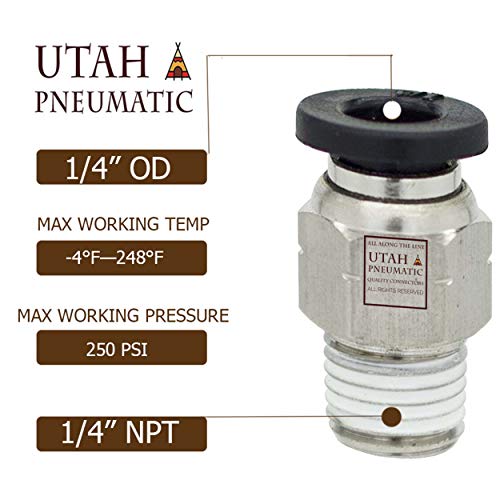

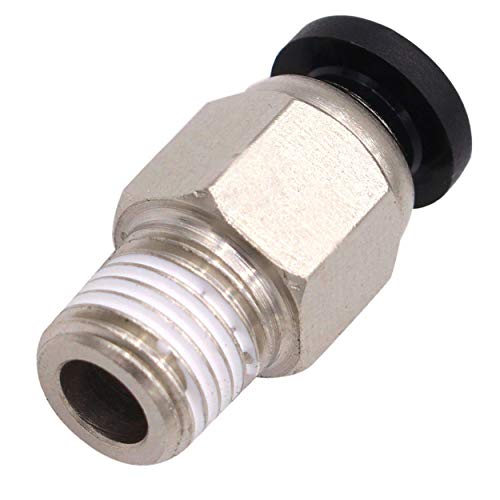

Push In Male Connector. Size:1/4” Tube OD 1/4”NPT
Description
Push In Male Connector. Size:1/4” Tube OD 1/4”NPT
Features:
- Type:Push In Male Connector. Size:1/4” Tube OD 1/4”NPT. Weight:18.5g
- Fluid Admitted:Air, Vacuum, Water (No Freezing)
- Working Pressure:0-1.0mpa | 0-150psi. Proof Pressure:3.0Mpa | 435psi
- Negative Pressure-100Kpa | -29.5 In Hg. Body:Nickel Plated Brass Seal, O-Ring NBR
- Working Temperature: 0-60°C | 32~140°F. Applicable Tube:PU / PA / PE / PVC
Publisher: Utah Pneumatic
Details: Utah Pneumatic Fittings are a compact one piece push-to-connect fitting. All items in the Utah Pneumatic composite range are silicone free. The Stainless steel gripping ring ensures excellent tube retention while the D seal within the fitting provides a positive seal on the O.D. of the tube, in both static and dynamic positions, due to an optimized design of the fitting cavity. Utah Pneumatic composite should not be used for live swivel applications. Body and collar are made of Nylon 6.6, gripping ring is stainless steel, and D seal and O-rings are Nitrile.
This product has no reviews yet.
