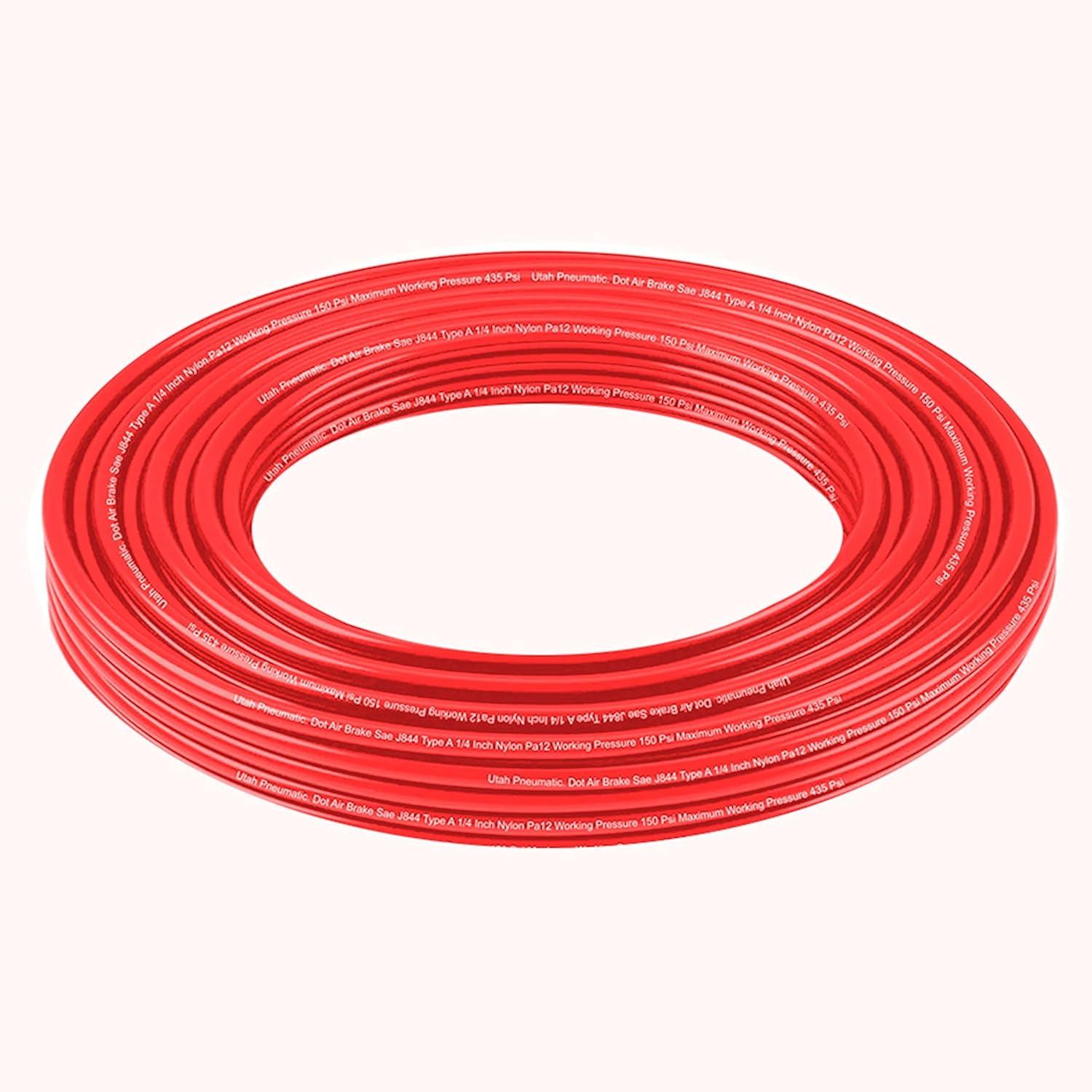

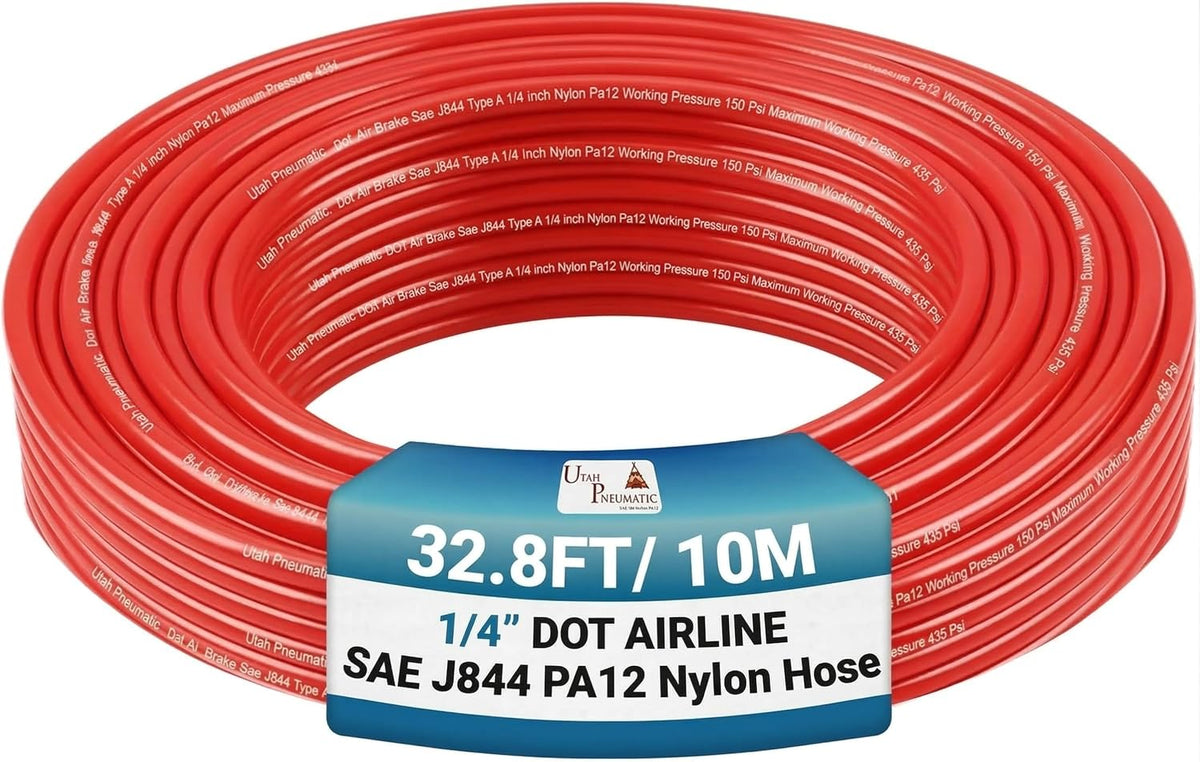

1/4" OD DOT Air Brake Nylon Tubing, 32.8 FT / 10M (Red, PA12) - UTAH PNEUMATIC

1/4" OD DOT Air Brake Nylon Tubing, 32.8 FT / 10M (Red, PA12) - UTAH PNEUMATIC

Regular price $19.90 USD
Regular price Sale price $19.90 USD
Sale Sold out
Shipping calculated at checkout.

Utah Pneumatic 3/8" OD DOT Air Brake Nylon Tubing (32.8 FT / 10M, Red PA12) is an industrial-grade pneumatic air line manufactured in strict compliance with SAE J844 and FMVSS 106 standards. Extruded from 100% virgin polyamide 12 (PA12), this heavy-duty hose provides exceptional pressure resistance, superior flexibility, and dependable protection against abrasion, weather, and road chemicals in commercial vehicle air systems.

🚚 FREE SHIPPING IN THE USA — Fast Delivery on All Orders!

Key Features & Benefits:

  • DOT & SAE Certified: Meets and exceeds DOT FMVSS 106 and SAE J844 Type A requirements for safe use in commercial truck, trailer, and towing pneumatic braking systems.
  • 100% Virgin PA12 Nylon: Engineered from high-purity polyamide 12 for high tensile strength, outstanding UV stability, and resistance to oils, fuel, grease, and road salt.
  • High-Visibility Red Color: Standard industry color-coding for emergency air brake lines, supply circuits, and immediate visual line tracking.
  • Extreme Temperature Range: Withstands rigorous operational environments from -40°F to +200°F (-40°C to +93°C) without cracking or loss of elasticity.
  • Standard Fitting Compatibility: Precisely sized 3/8" outer diameter integrates seamlessly with DOT brass compression fittings and DOT push-to-connect air brake fittings.
  • Free Fast Shipping: Fast direct delivery across the United States with no extra shipping fees.

Technical Specifications:

Product Type DOT Air Brake Tubing (Type A - Non-Reinforced)
Tube Outside Diameter (OD) 3/8" (9.52 mm)
Tube Inside Diameter (ID) 0.251" (6.38 mm)
Total Length 32.8 FT / 10 Meters
Material 100% Virgin Polyamide 12 (Nylon PA12)
Color Red
Certifications / Standards SAE J844, DOT FMVSS 571.106
Working Pressure Range Up to 150 PSI (Burst pressure: 800+ PSI)
Operating Temperature Range -40°F to +200°F (-40°C to +93°C)
Compatible Fittings DOT Brass Push-to-Connect & DOT Compression Fittings
