Why Full Nickel-Plated Brass Swivel Elbows Are a Game-Changer for Pneumatic Systems
Share

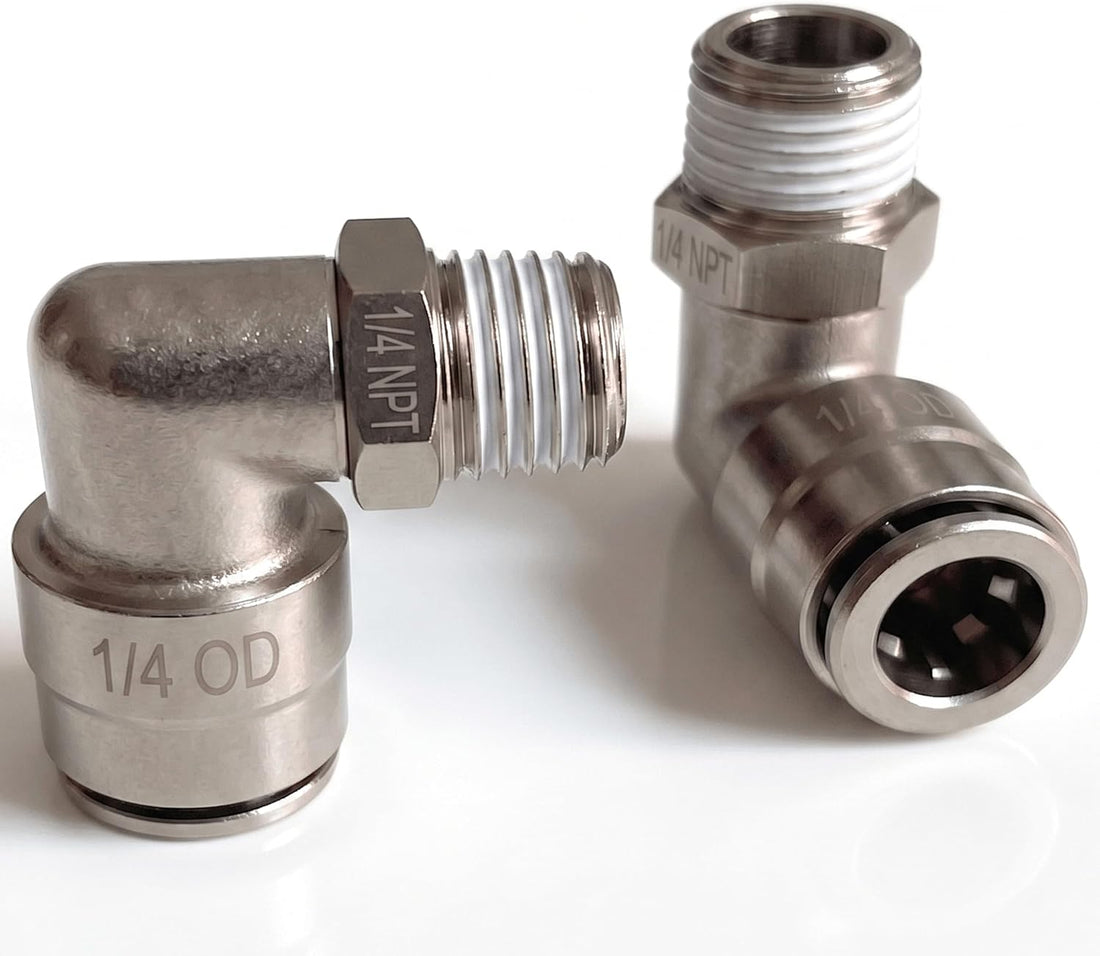

When building or maintaining high-performance pneumatic systems, connection integrity is everything. The Utah Pneumatic 1/4" OD x 1/4" NPT Male Swivel Elbow (PL 1/4-N2) is engineered specifically to eliminate common failure points in tight setups, offering heavy-duty reliability, effortless routing, and a guaranteed leak-free seal.
Key Features & Advantages
-
All-Metal Nickel-Plated Brass Construction: Unlike standard composite/plastic fittings that crack under vibration or degrade over time, full nickel-plated brass provides superior corrosion resistance, extreme durability, and a clean professional finish.
-
360° Swivel Elbow Design: The 90-degree elbow body rotates 360 degrees even after the NPT thread is tightened into the port, allowing optimal tube alignment in confined spaces without kinking or stressing the air line.
-
Pre-Applied Thread Sealant: The 1/4" NPT male threads come pre-coated with Teflon sealant, ensuring an airtight seal immediately upon installation without the hassle of manual tape wrapping.
-
True Push-to-Connect Mechanism: Effortlessly connects and disconnects rigid and flexible tubing by hand—no wrenches or specialty tools required for line insertion.
-
Wide Tubing Compatibility: Compatible with standard 1/4" OD Polyurethane (PU), Nylon (PA), Polyethylene (PE), and PVC air lines.
Technical Specifications
| Specification | Details |
| Model | PL 1/4-N2 |
| Tube Size (OD) | 1/4" Outer Diameter |
| Thread Size | 1/4" NPT Male (Tapered, Pre-Tefloned) |
| Body Style | 90° Swivel Male Elbow |
| Material | Heavy-Duty Nickel-Plated Brass |
| Working Pressure | 0 to 150 PSI (0 to 10 Bar) |
| Working Temperature | 32°F to 140°F (0°C to 60°C) |
| Applicable Fluid | Compressed Air, Inert Gas, Vacuum |
Common Applications
-
Industrial Automation & Machinery: Perfect for robotic actuators, air cylinders, manifold distribution blocks, and valve terminals.
-
Air Suspension & Automotive: Reliable routing for 1/4" air ride lines and onboard compressor tanks where vibration and space constraints are critical.
-
Workshop & Air Tool Stations: Ideal for drop lines, pressure regulators, air filter-regulator-lubricator (FRL) units, and custom DIY setups.
Why Choose Utah Pneumatic?
Designed with precision laser markings (1/4 OD and 1/4 NPT) directly on the fitting body for instant identification, the PL 1/4-N2 5-Pack delivers the perfect balance of rugged performance and installation convenience for pros and DIYers alike.
